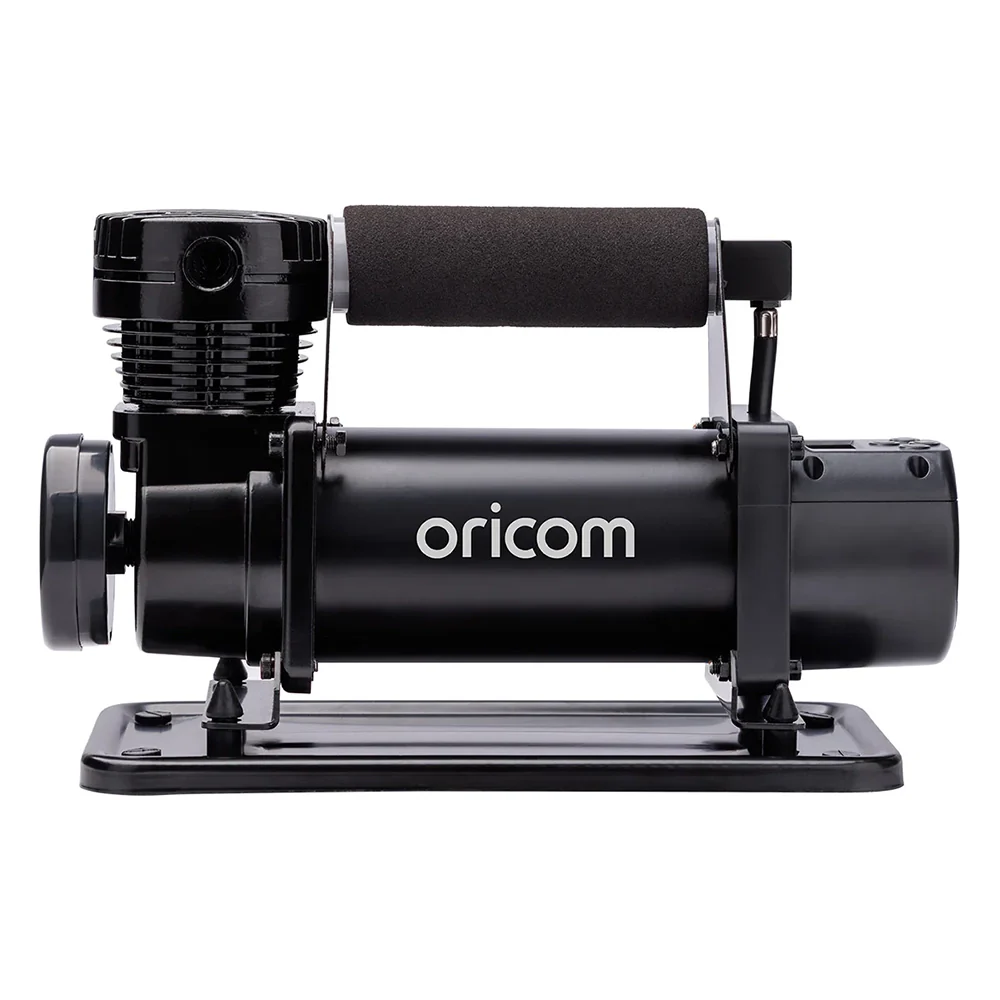

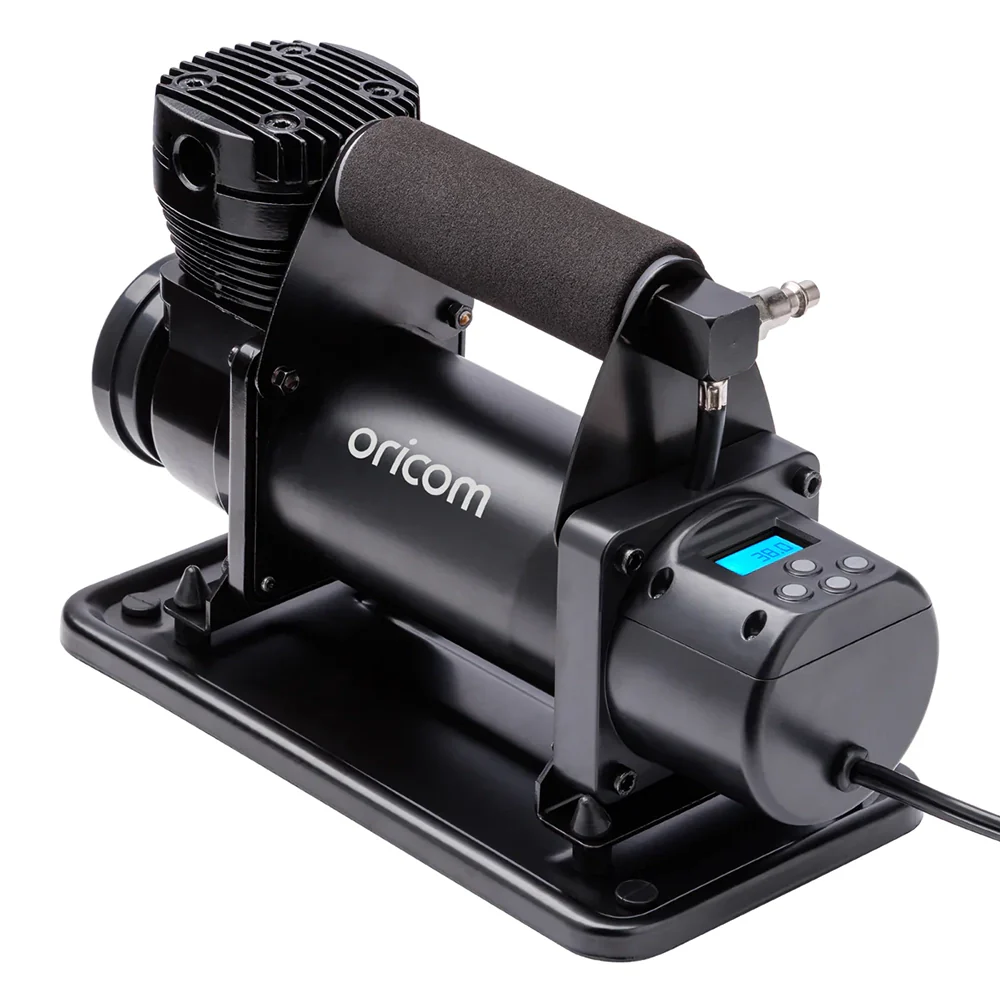

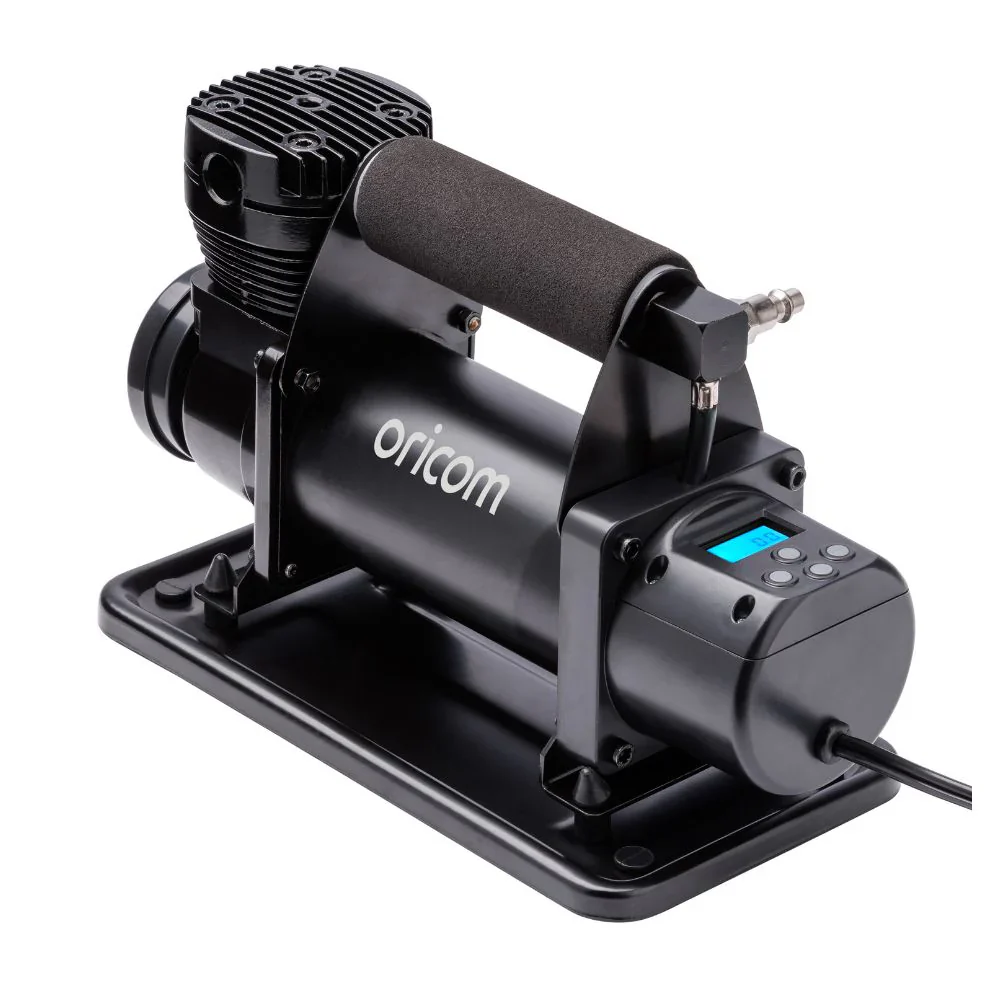

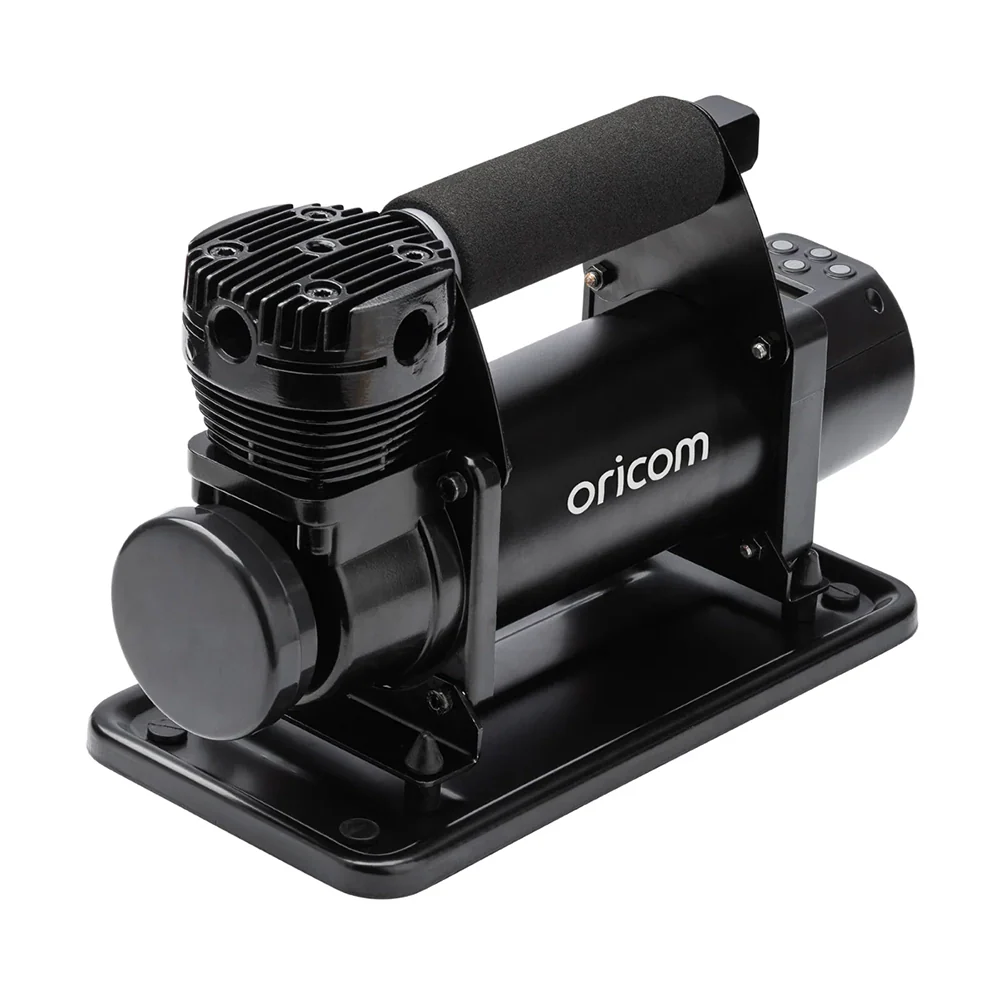

Oricom Portable Air Compressor with Backlit Digital Display - AIR20
The Oricom AIR20 is a high-performance portable air compressor, delivering quick inflation with a 200PSI max pressure and 70L/min max air flow rate, perfect for 4WDs and off-road vehicles. Durable air filter, automatic shut-off, and thermal protection, ensures safe, reliable inflation.
Key Features:
- Max Pressure of 200 PSI – Ample pressure for inflating a variety of vehicle tyres, from standard to high-performance off-road tyres.
- Air Flow Rate of 70L/min (0 PSI) – Fast inflation from completely deflated tyres, reducing waiting time and enhancing efficiency.
- Thermally Protected Motor (Shuts off at 115°C) – Prevents overheating by automatically turning off the compressor when it reaches high temperatures.
- Max Working Pressure of 150 PSI – Delivers reliable inflation for heavy-duty tyres under demanding conditions.
- Automatic Shut-Off Pressure Switch (120-150 PSI) – Prevents over-inflation by automatically stopping once the desired pressure is reached.

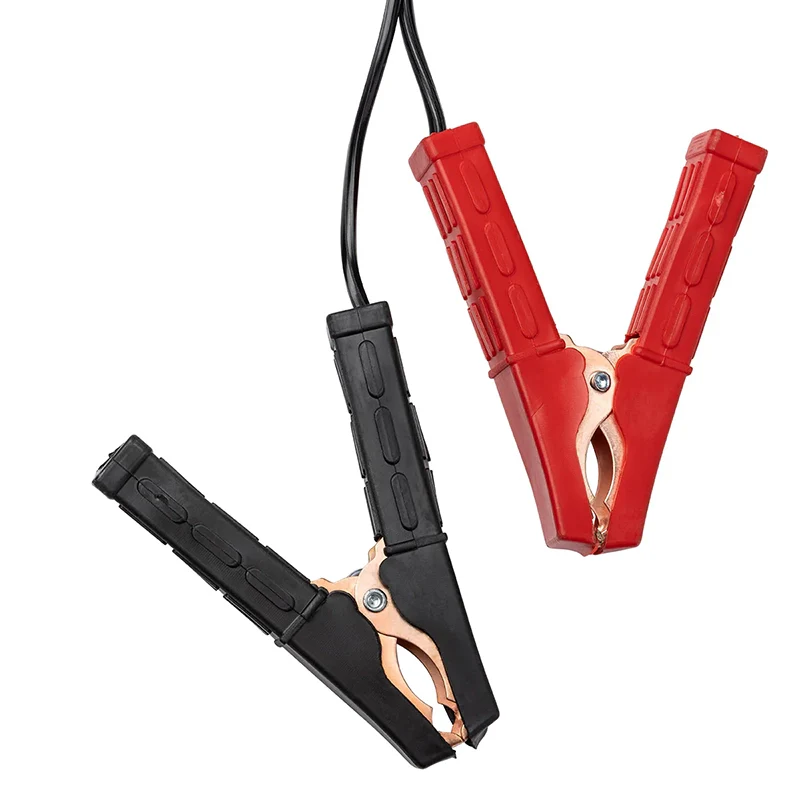

- 3m Power Cable with Battery Clamps – Ensures a secure, direct connection to your vehicle’s battery for reliable power.

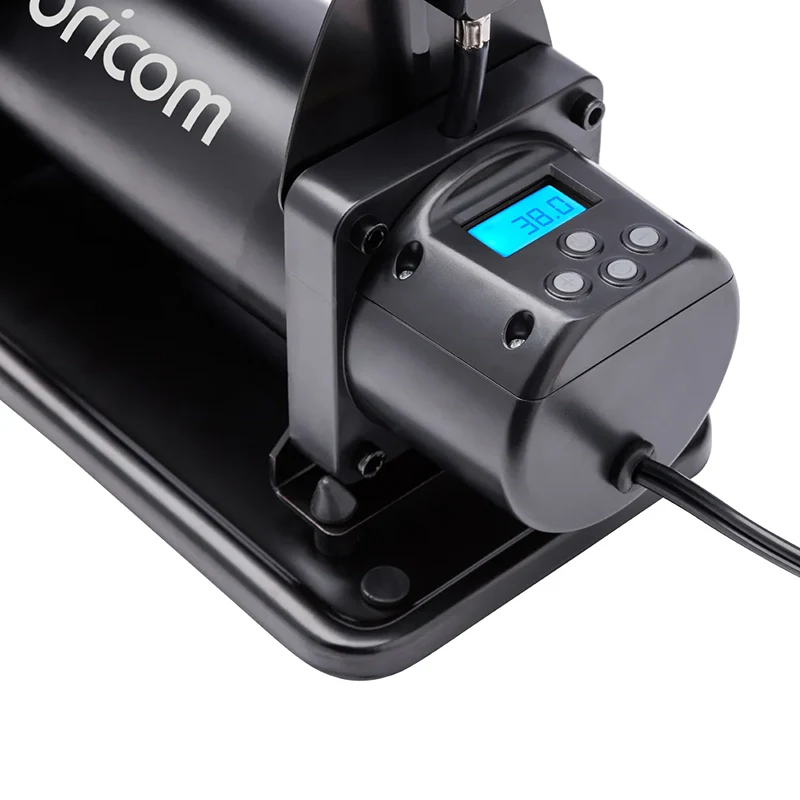

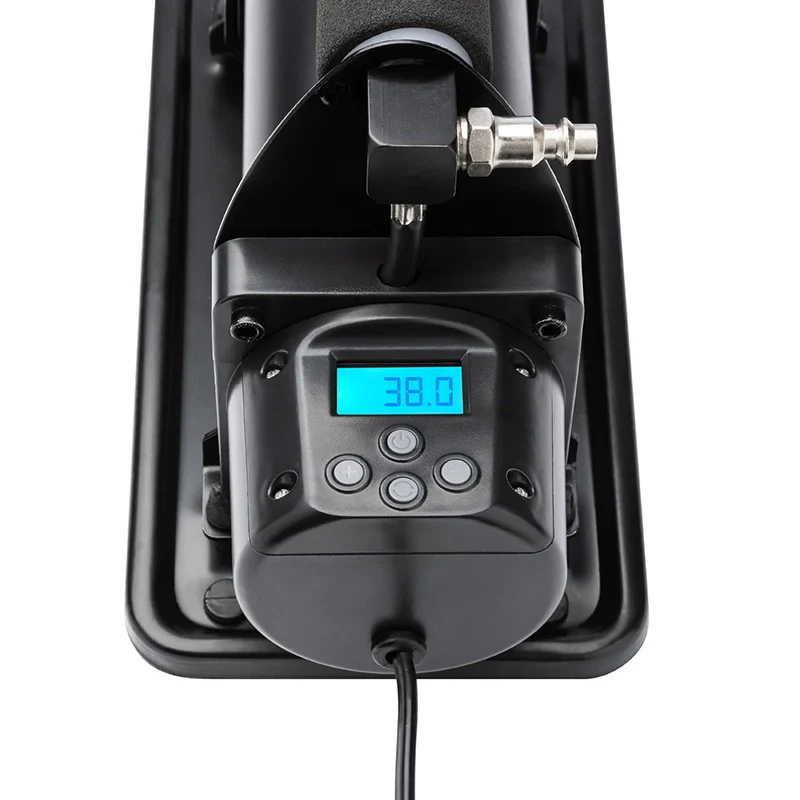

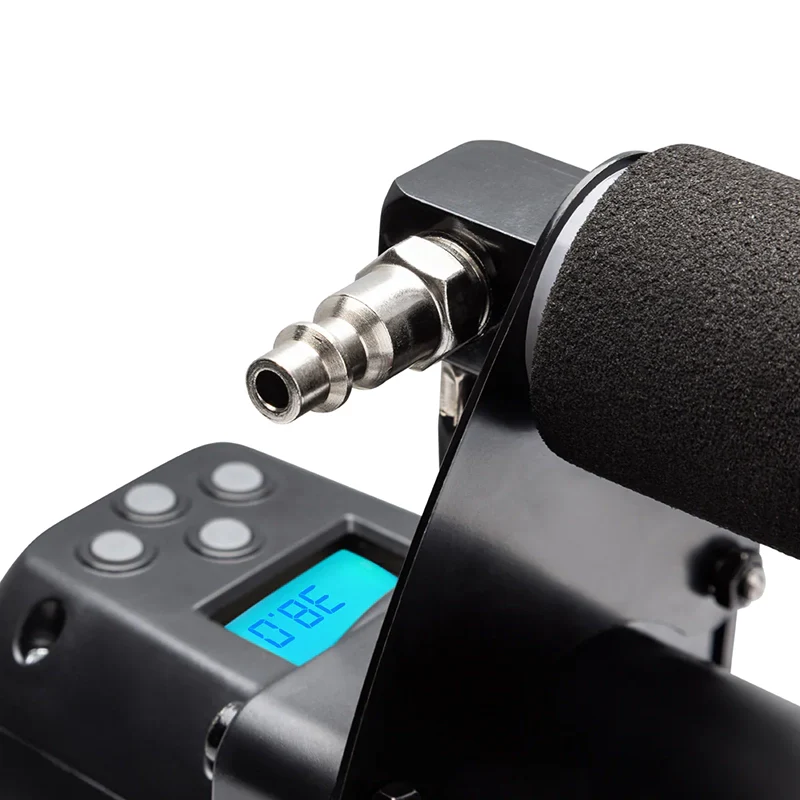

- Integral Digital Pressure Gauge – Allows for accurate tyre pressure monitoring.

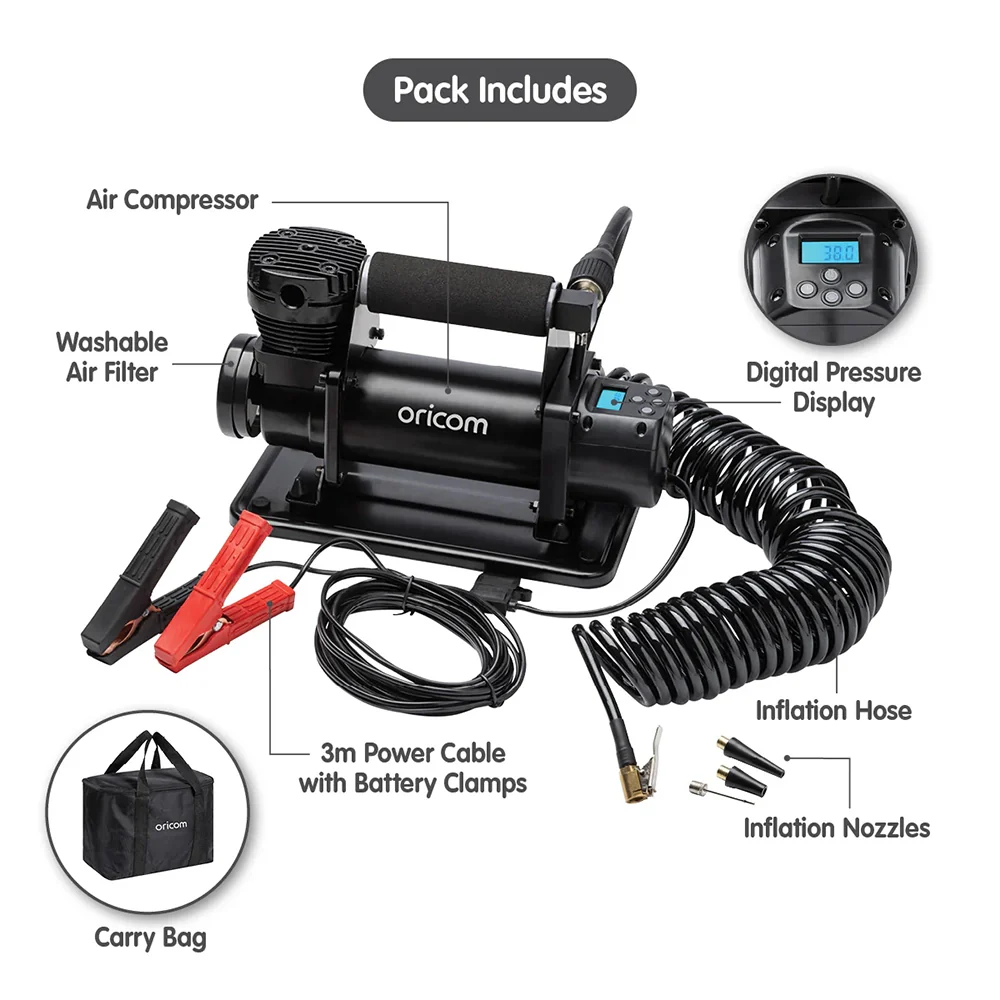

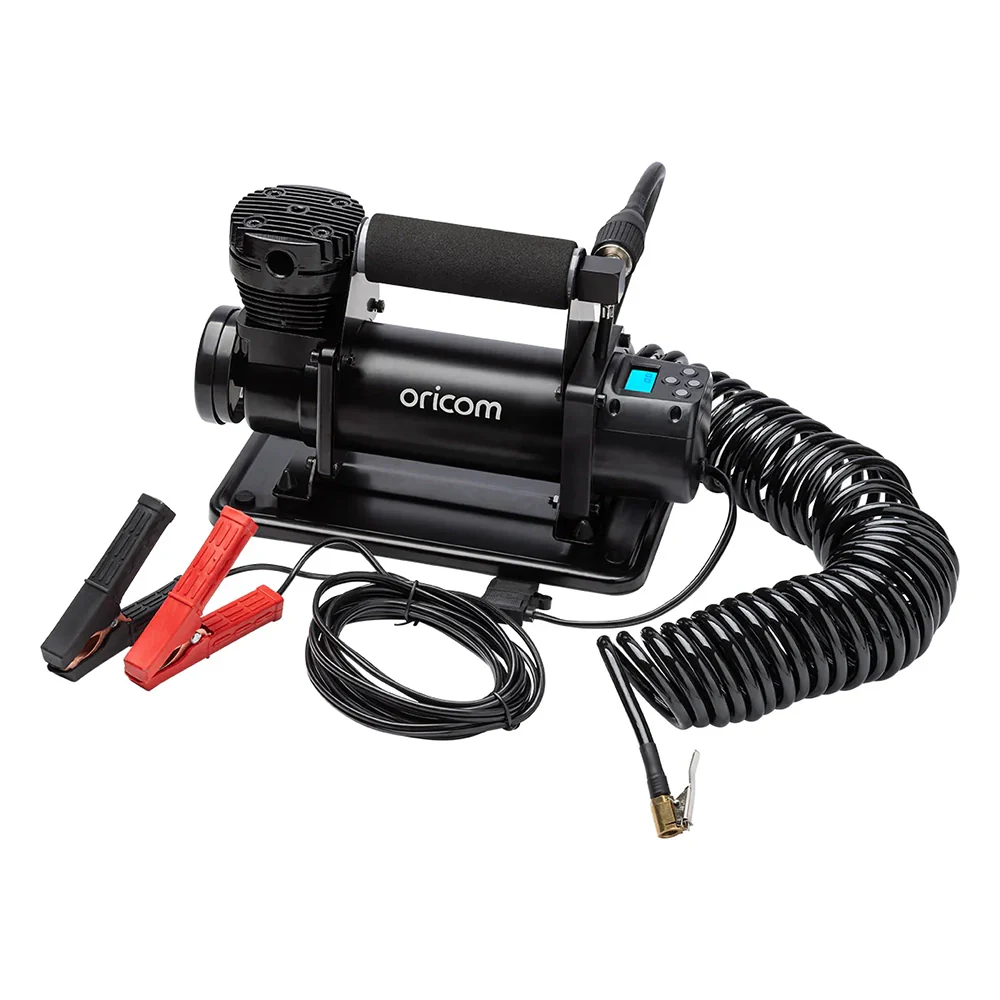

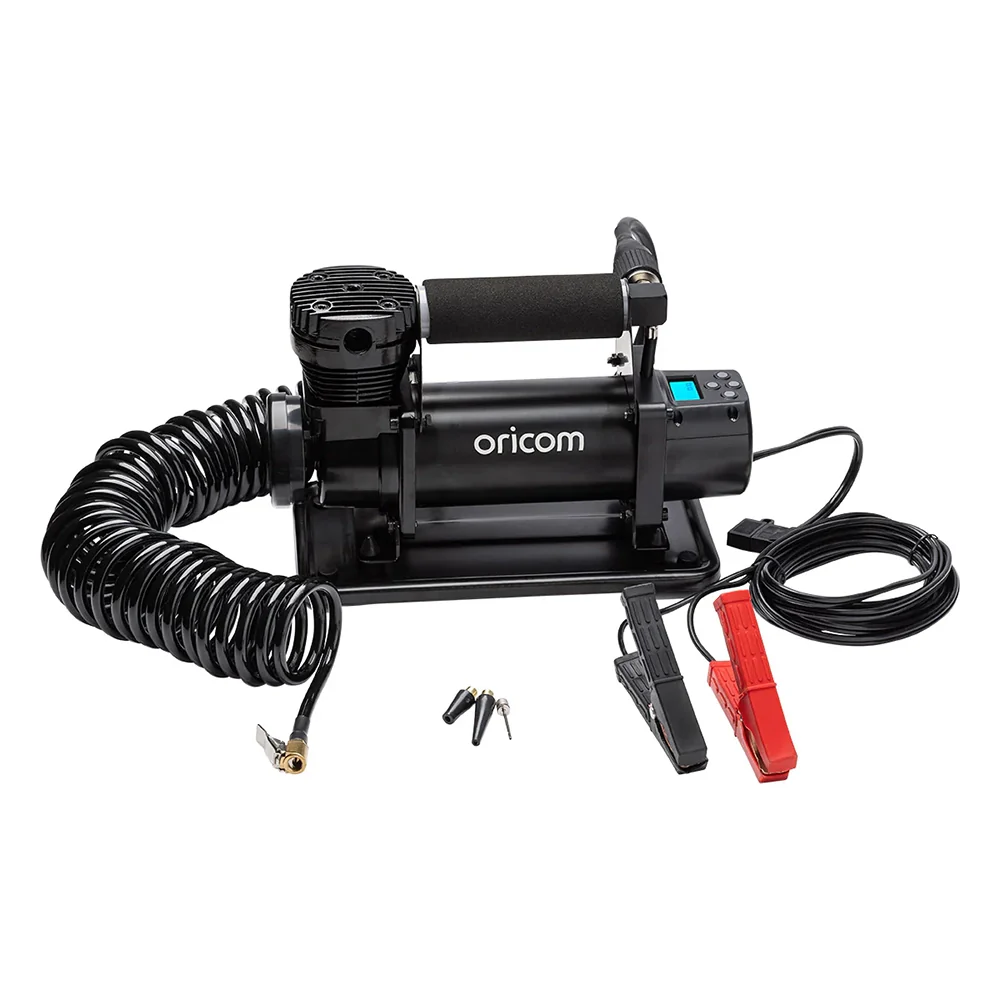

Pack Includes:
1 x Digital Air Compressor
1 x Washable Air Filter
1 x Integral Digital Pressure Gauge with auto shut off
1 x 7.5m Inflation Hose with ¼" NPT quick connect fitting
1 x 3m Power cable with battery clamps

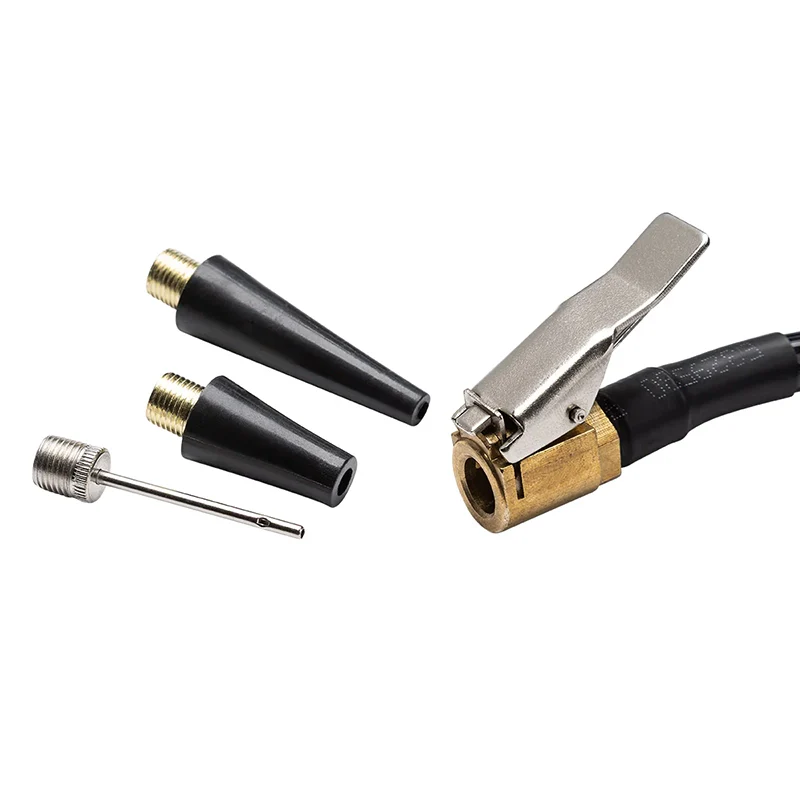

3 x Inflation Nozzles

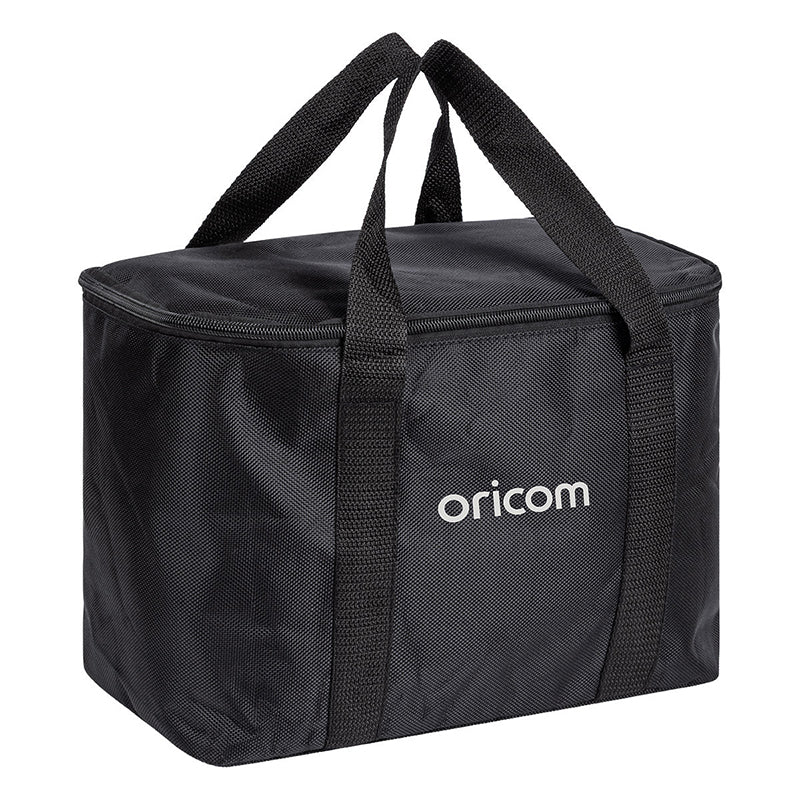

1 x Carry Bag
Specifications:
Cylinder Diameter (Bore) 40mm
Voltage 12-13.8VDC
Current Draw Under Load 32A
Current Draw No Load 18A
In line Fuse Supplied 40A
Washable Air Filter Yes
Max Pressure 200PSI
Max Working Pressure 150PSI
Duty Cycle Working 30mins - Rest 30mins
Air Flow Under Load 48L/min(40PSI)
Air Flow Rates 70 L/min (0PSI) 50 L/min (29PSI)
Automatic Shut-off Upon reaching pressure set on display
Thermal Protection Automatically shuts off at 115°C to prevent overheating
Connection to Battery 3m Cable with Battery Clamps
Hose Length 7.5m
Hose Connector Type NPT ¼" Quick Connect
Product Dimensions (cm) 30 x 13.5 x 19
Weight 5.8kg
Warranty 3 Years
Tested to meet safety standards: AS/NZS 60335.1:2020-tAl:2021 and EMC compliant with EN/IEC 55014-1:2021
