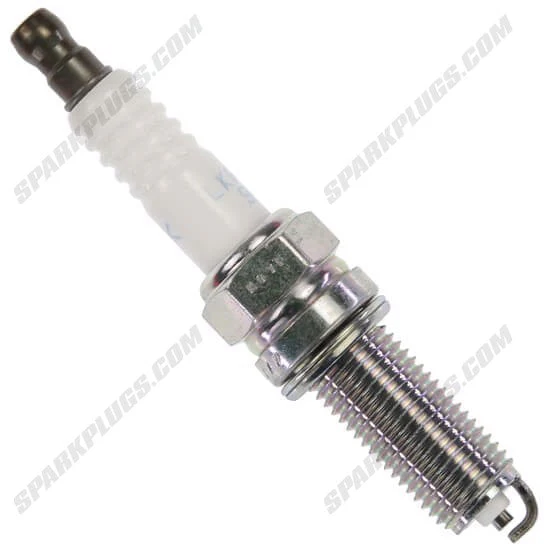

NGK Standard Spark Plug - LKR6E-9N

NGK standard plugs are constructed for longer life and optimum performance.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

• Shell
• Thread Diameter12mm
• Thread Pitch1.25mm
• Seat TypeGasket
• Reach26.5mm (1.04")
• Hex Size5/8" (16mm)
• Terminal TypeSolid
• Gap.035" (0.9mm)

• Center Electrode
• MaterialNickel
• TypeStandard
• Size2.5mm
• ProjectionProjected

• Ground Electrode
• MaterialNickel
• TypeStandard
• Quantity1

• Specifications
• ResistorYes
• Resistor Value5k Ohm
• Heat Range6
• Torque SpecsCast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.

• Part Information
• BrandNGK/NTK
• Warranty60 Days
• Longevity30k Miles
