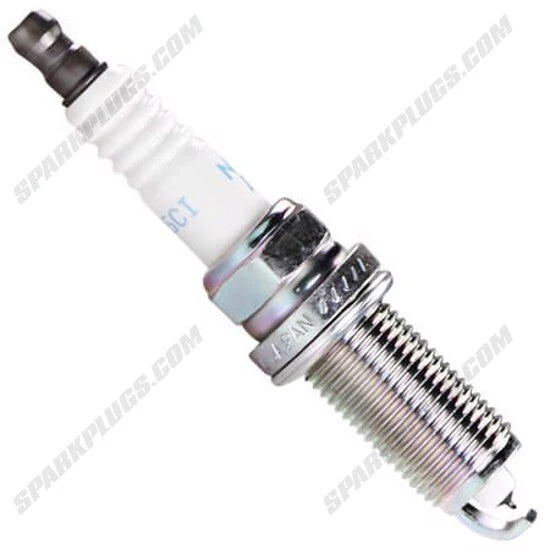

NGK Iridium Spark Plug - ILZKAR8J8SY

NGK single iridium plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

• Shell
• Thread Diameter12mm
• Thread Pitch1.25mm
• Seat TypeGasket
• Reach26.5mm (1.04")
• Hex Size9/16" (14mm)
• Terminal TypeSolid
• Gap.030" (0.75mm)

• Center Electrode
• MaterialIridium
• TypeFine Wire
• Size0.6mm
• ProjectionExtended Projection

• Ground Electrode
• MaterialPlatinum
• TypeStandard
• Quantity1

• Specifications
• ResistorYes
• Resistor Value5k Ohm
• Heat Range8
• FeaturesExtended metal shell
• Torque SpecsCast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.

• Part Information
• BrandNGK/NTK
• Warranty60 Days
• Longevity100k Miles
