Davies, Craig Universal Fit Hydra-Cool 30 Plate Transmission Fluid Cooler and 10" 12V Thermatic Fan Combo - 691

Enhance your automatic transmission cooling capabilities with the Davies Craig 30-plate heavy duty Hydra-Cool® Transmission Cooler coupled with the 10” Slimline Thermatic Fan.

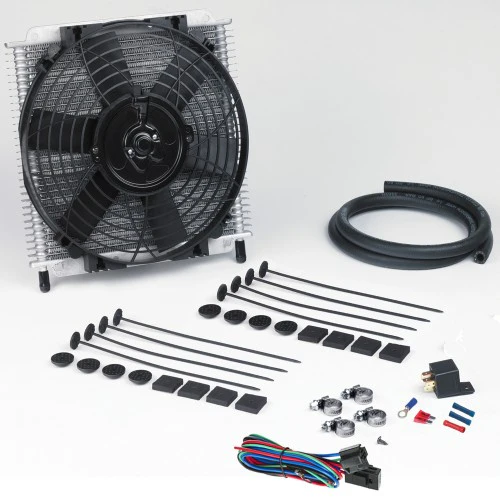

Transmission Oil Cooler 30 Plate & 10" Fan Combo (12V) (Part #691)

Enhance your automatic transmission cooling capabilities with the 30-plate heavy duty Hydra-Cool^® coupled with the 10” Slimline Thermatic Fan. Greater mounting flexibility with this combo pack enables you to further control and direct air flow through the Hydra Cool core. Plus, the Davies Craig 10” reverse polarity Slimline Thermatic^® Fan can be attached to this core to operate in either ‘push’ or ‘pull’ mode.

• 100% pressure tested at 150psi for quality assurance
• 33% more efficient than a comparable tube and fin design
• Pre-drilled mounting plates for easy installation
• Internal turbulation for efficient heat transfer
• 3/8” push-on fittings for quick and easy installation.



KIT CONTENTS
DESCRIPTION	UNITS
Hydra-Cool® 30-plate transmission oil cooler	1
3/8” hose (1.4 meters)	1
Hose clamps	4
10” Electric Fan (12V)	1
Wiring Harness - Fans 12 & 24V	1
Quick Fit Kits – nylon ties x4	2
RED - Wire Joiner	1
SCREW - SELF TAP 8X3/8 BZ	1
RELAY - 12V 40 Amp 5 Pin W/- Resistor Protection	1
BLUE - Wire Joiner	2
BLUE 6mm Ring Terminal	1
FUSE WEDGE 15 AMP (AF15)	1
Instructions	1
