BlackVue Full HD 2 Channel Dash Camera OBD Bundle - DR590X-2CH-32-PL-OBD

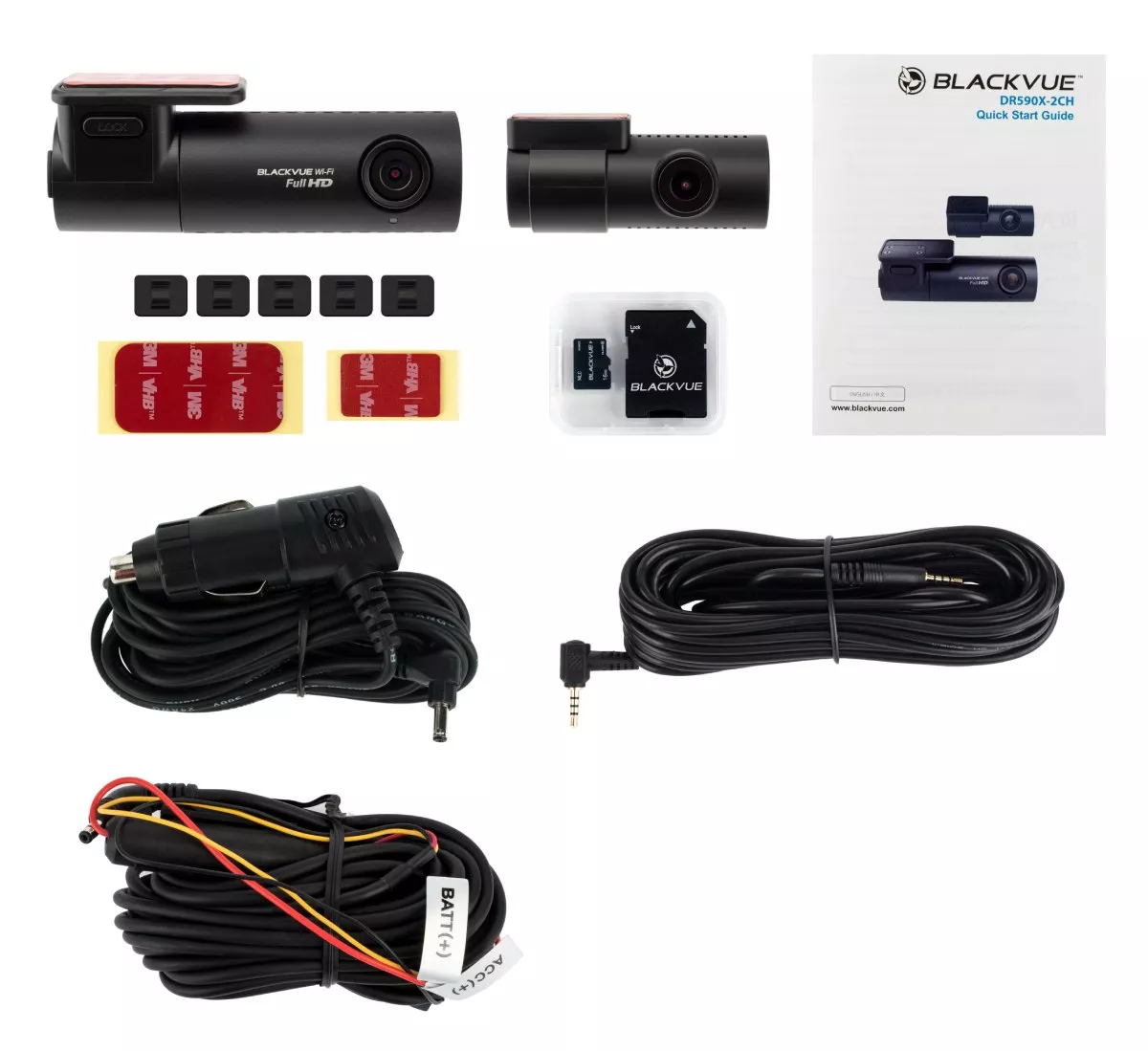

BlackVue DR590X-2CH-PLUS DIY Bundle: Dual Full HD 1080P dash cam with bonus OBD hardwire kit
High performing mid-tier dash cam, with Full HD front and rear recording, optional GPS and built-in WiFi. Equipped with a Sony STARVIS™ Sensor.
Features:
- Three year warranty
- Full HD Front & RearSony STARVIS™ image sensor equips the DR590X Plus Series front and rear cameras delivers outstanding low-light performance.
- Built in 2.4GHz WiFi
- Native Parking Mode support
- 32GB SD Card
The easiest way to enable parking mode for your BlackVue dash cam. Compatible with most vehicles manufactured since 2010* Simply plugs into your vehicle’s OBD II port.
Key Specifications
| Model Name |
DR590X-2CH PLUS |
|---|---|
| Channel |
2 Channel (Front & Rear) |
| Colour / Size / Weight |
W 175 (6.88) x L 36 (4.29) x H 85 (3.34) mm (in) / 315g Rear: Black / Width 67.4 mm x Height 25 mm / 25 g |
| Memory |
microSD Card (32 GB/64 GB/128 GB/256 GB/512 GB) *Only BlackVue SD cards are recommended. |
| Speaker |
Built-in Speaker |
| GPS |
Optional |
| LED |
Recording LED, GPS LED, Wi-Fi LED |
| Sensor |
3-Axis acceleration sensor |
| Battery or Capacitor |
Built-in Super Capacitor Capacitor's are better as they are not at risk of heat damage which batteries face. |
Camera + Recording
| Recording Mode |
Normal Recording |
|---|---|
| Button |
Wi-Fi on/off |
| Camera |
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) |
| Viewing Angle |
Front: Diagonal 131°, Horizontal 107°, Vertical 55° |
| Format Free |
Yes (Adaptive) |
| Resolution/FPS |
Full HD @30fps – Full HD @30fps |
| Image Quality |
Highest (12+ 10 Mbps) |
| Video Codec |
H.264 (AVC) |
| Video File Extension |
MP4 |
Operating
| Input Voltage |
DC 12V – 24V (3 pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V) |
|---|---|
| Current Consumption |
Normal Mode (WiFi Off/GPS On): 330mA/hour |
| Voltage Cut-off |
Built-In Power Magic Pro not required with DR590X-2CH |
| Operating & Storage Temp |
-20℃ – 70℃ (-4°F – 158°F ) |
| High Temperature Cut-off |
Approximately 80℃ (176°F) |
Other
| Wi-Fi |
Built-In |
|---|---|
| Software |
PC Application BlackVue Viewer* Windows 7 or higher and |
| GPS |
Optional |
| Application |
BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) |
| Microphone |
Built-in |
| Origin |
Made in Korea |
| Certifications |
FCC, CE, RoHS, Telec, WEEE, IC, RCM |
| Warranty |
36 Months Warranty (Australian Customers Only) T&C's Apply |
